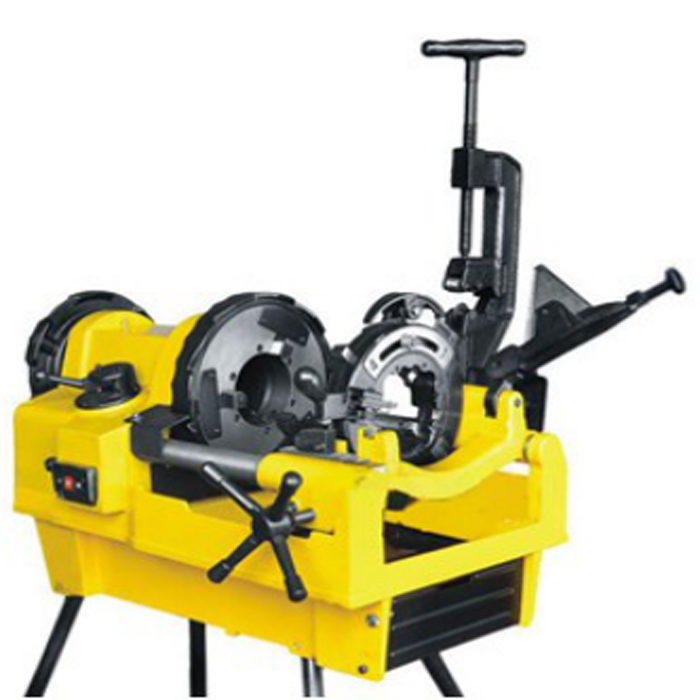

| Name: | Electric Pipe Threading Machine 4 inch |
|---|---|
| Model: | SQ100F |
| Rated Voltage: | 110V/220V 50/60HZ |
| No-Load Speed: | 36/20/11 RPM |
| Die Head: | self-opening die head |
| Capacity: | 4 inch |
| Power: | 1500w |
Features
An induction motor ensures sound levels well when using.
A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
¼”-2” universal Die Head; 2½”-4” receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Approved by CSA and CE standards.
Specifications
Motor: 1500W induction, 50/60Hz,single phase.
Switch: ON/OFF heavy duty switch,foot switch and FOR/OFF/REV switch is optional
Spindle Speed: 36/20/11 RPM.
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with intergral oil reservoir.
Standard Equipment
Model SQ100F threading machine.
Self-open die head, 1/4”-2”
Receding self-open die head, 2 1/2”-4”½”-¾” universal HSS dies set.
1”-2” universal HSS dies set.
2 1/2”-4” universal HSS dies set.
Cutter: Capacity: 1/4”-2”(6mm-50mm) pipe
Reamer: Positive-locking, right-hand1/4”-2”(6mm-50mm).
Capacity
For pipe: 1/2"-4" (BSPT or NPT)
For bolt: M14-M39 (need additional metric die head & dies)
Threads: standard BSPT or NPT
BSPP (optional dies)
ISO (M14-M39) (optional dies)
| Cat no. | Model no. | Description | Weight |
| 47020 | SQ100F | pipe threading machine complete set,220V,50HZ ,BSPT | 140KG |
| 47010 | SQ100F | pipe threading machine complete set,110V,60HZ ,NPT | 140KG |
| Cat no. | Model no. | Description | Weight |

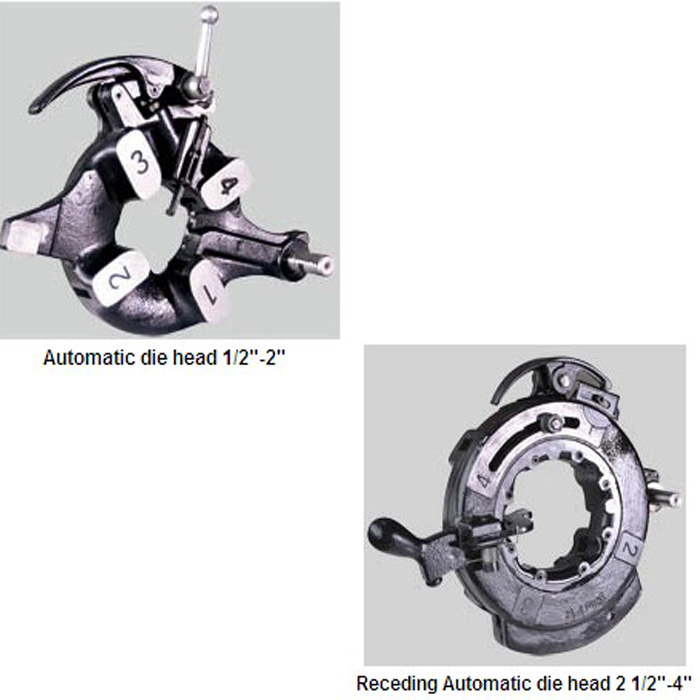

| Die head 1/2"-2",Automatic | 3.8KG | ||
| Die head 2 1/2"-4",Automatic | 6.5KG | ||
| Nipple chuck, BSPT | 4.8KG | ||
| Nipple chuck, NPT | 4.8KG |
| Cat no. | Size | Material | Weight |
| 1/4"-3/8" BSPT(optional) | HSS | 0.75KG | |
| 24051 | 1/2"-3/4" BSPT | HSS | 0.75KG |
| 24053 | 1"-2" BSPT | HSS | 0.75KG |
| 1/4"-3/8" NPT(optional) | HSS | 0.75KG | |
| 21051 | 1/2"-3/4" NPT | HSS | 0.75KG |
| 21053 | 1"-2" NPT | HSS | 0.75KG |
| 1"-2"BSPP | HSS | 0.75KG | |
| 24055 | 2 1/2"-4" BSPT | HSS | 1.0 KG |
| 21055 | 2 1/2"-4" NPT | HSS | 1.0 KG |
