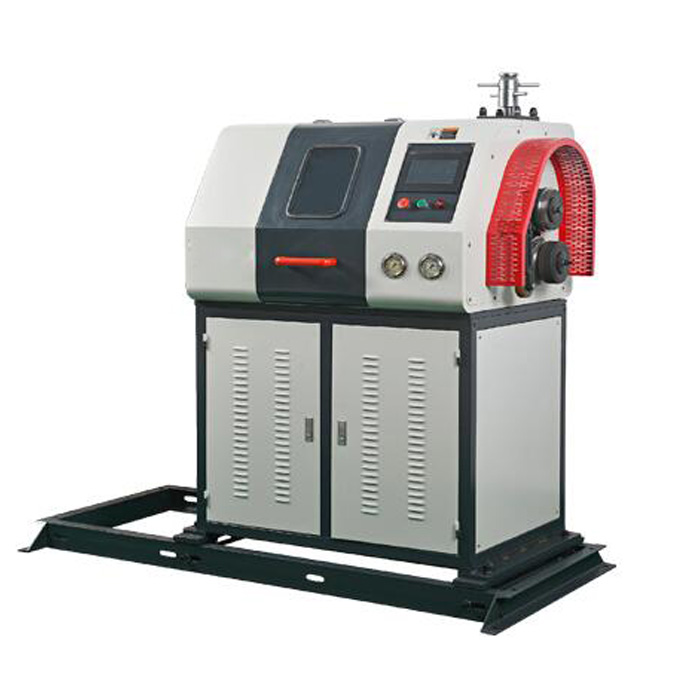

Automatic Grooving Machine

This machine is designed for automatic production line of steel pipes

Capacity
2"-12"(∅60-∅325)SCH40 steel pipe and SCH30 plastic lining steel pipe

Max. wall thickness: 10mm
Output RPM:45rpm
G.W: 1070kgs
Packaging size: 180x94x180(cm)

Output RPM of spindle is variable for different steel pipes improve the work efficiency greatly

Achieve 100% automatic production after assembled with the steel pipe production line

The electrical system, hydraulic system are controlled by computer with touch screen operation
