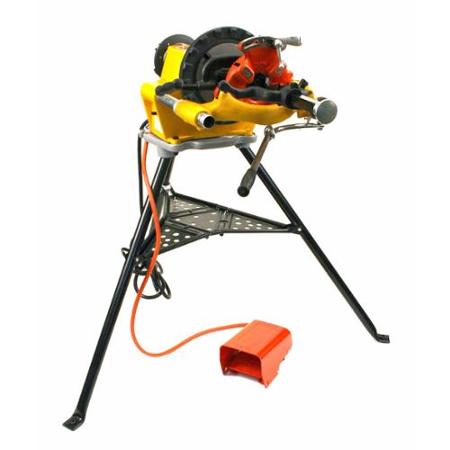

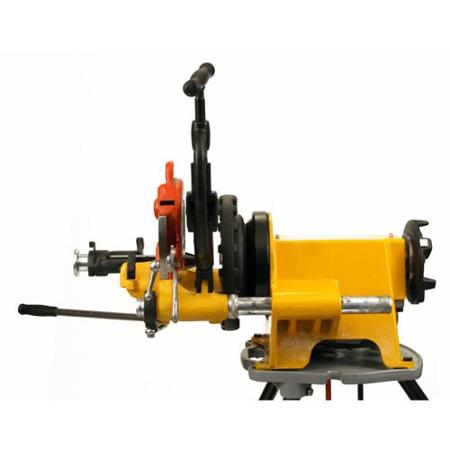

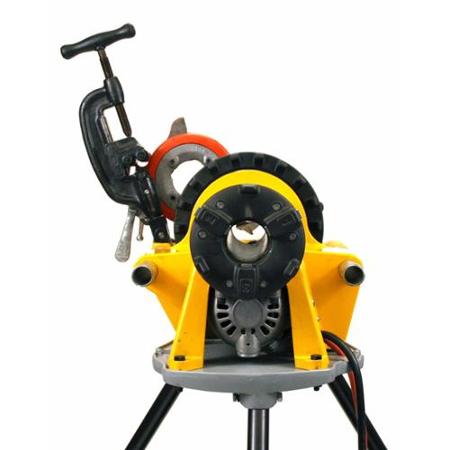

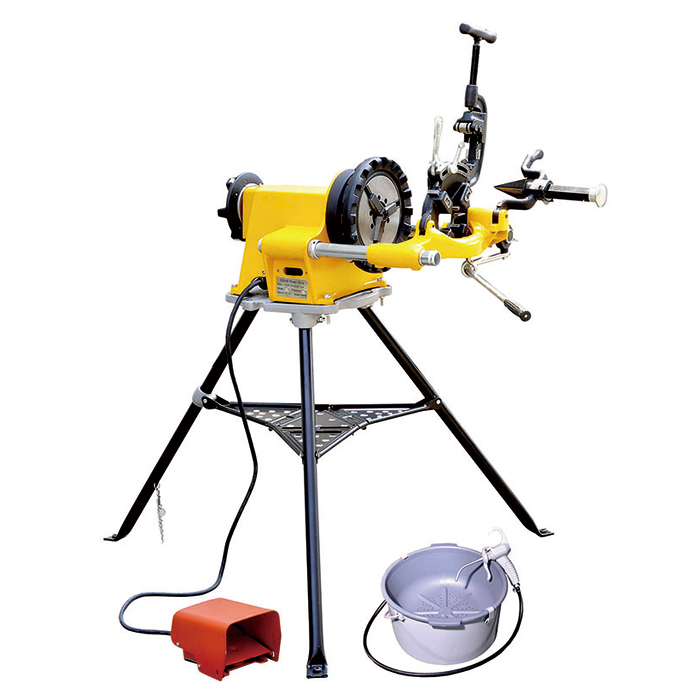

| Name: | Electric Pipe Threader 2 inch |
|---|---|
| Model: | SQ50D |
| Rated Voltage: | 110V/220V 50/60HZ |
| Applicable Pipe Thread: | 1/2 |
| Rated Input Power: | 1500W Universal |
| Switch: | Heavy-duty FOR/OFF/REV and Integral Foot Switch. |
| Spindle Speed: | 38 RPM (57 RPM available) |
| Rear Centering Device: | Cam-action turns with chuck. |
| Die head: | quick-opening die head 1/2 |
| Threading dies: | HSS |
| Net weight: | 80kg |
| Gross weight: | 98kg |
| Packing size: | 100 (L) 52 (W) 47(H) |
1,Compact design for easy transportation
2,Powerful motor completes a thread in only 18 seconds
3,Can be used as pipe grooving
4,All size of threads get processed only in one turn
5,Easy maintenance
Specifications

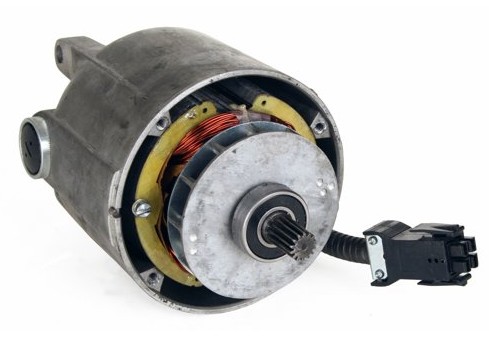

Motor: 1500W Universal, reversible motor, single-phase,110V or 220V, 50/60Hz.
Switch: Heavy-duty FOR/OFF/REV and Integral Foot Switch.
Chuck: Speed chuck with replaceable rocker-action jaws.
Spindle Speed: 38 RPM (57 RPM available)
Rear Centering Device: Cam-action turns with chuck.
Support Bar: Heavy-duty
