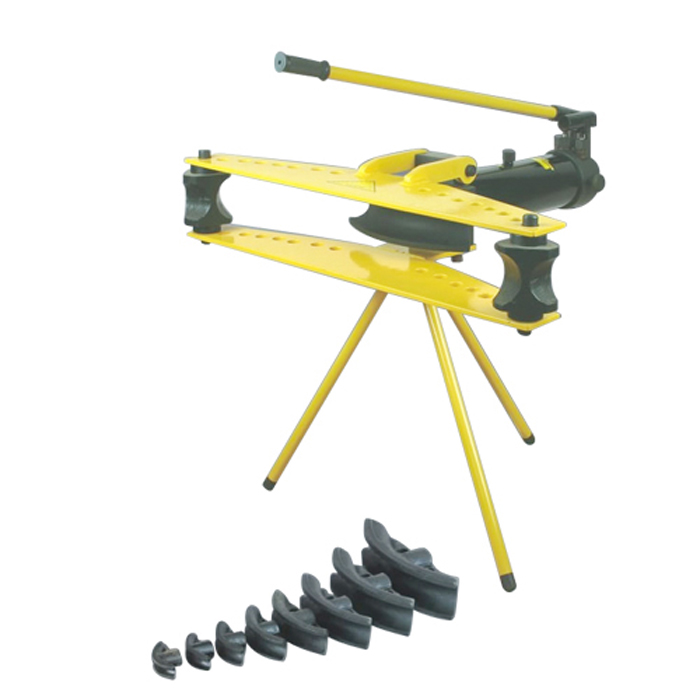

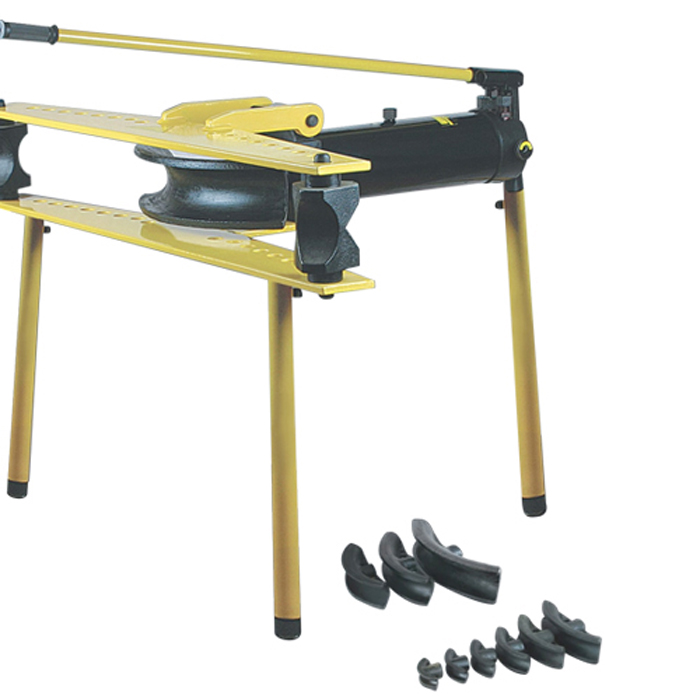

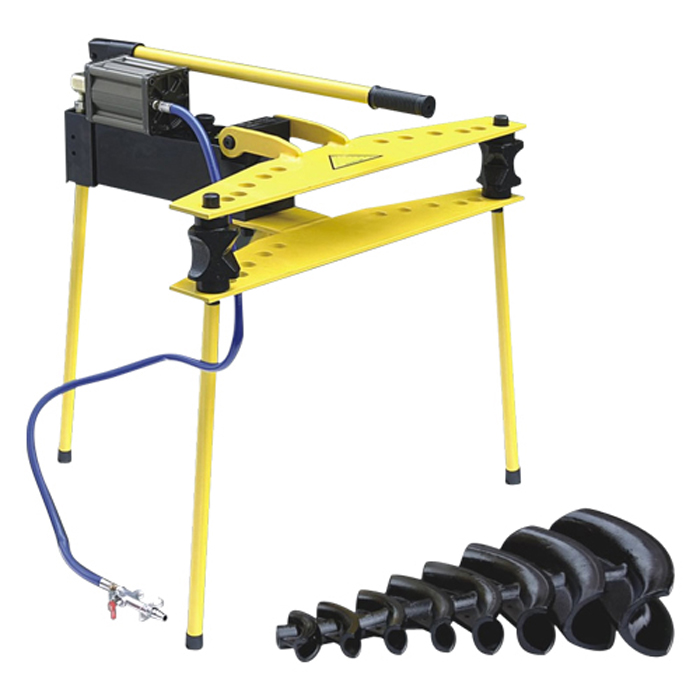

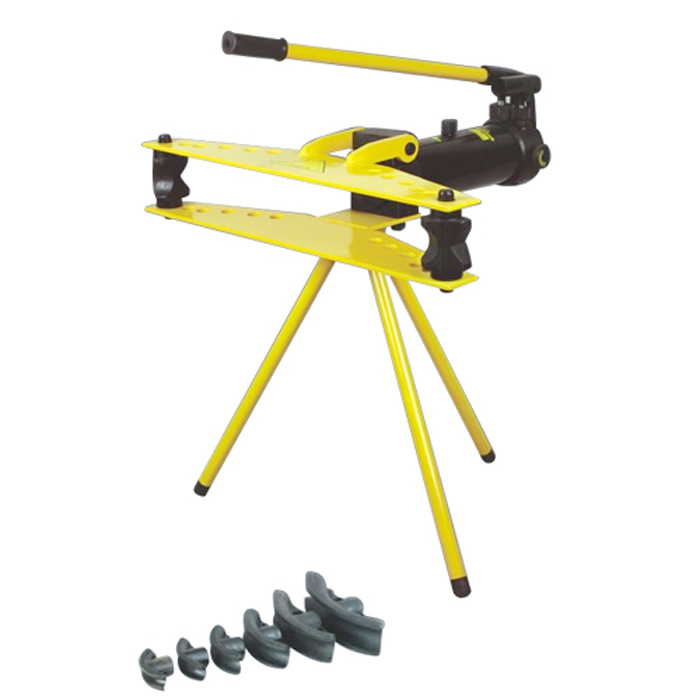

Featuring

1.Simple manual hydraulic operation for easy use.

2.Completely manual hydraulic operation so external power is not needed .

3.Rotating stand locks in three positions forstability and versatility.

4.Heavy-duty hydraulic cylinder capable ofbending schedule 40 pipe.

5.Different standard bending dies included  (1/2", 3/4", 1", 1-1/4",1-1/2", 2",2 1/2”,3”,4”).

6.Pipe stands are also included for better bending experience .

Specifications

Model:HHW-2J

Pipe wall thickness :2.75-4.5mm

Bending dies:  1/2",3/4",1",1 1/4",1 1/2",2"

Max stroke :250mm

-----------

Model:HHW-3J

Pipe wall thickness :2.75-5mm

Bending dies:  1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3"

Max stroke :290mm

----------

Model:HHW-4J

Pipe wall thickness :2.75-6mm

Bending dies:  1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4"

Max stroke :370mm
